Axia QOR.32 Console Engine

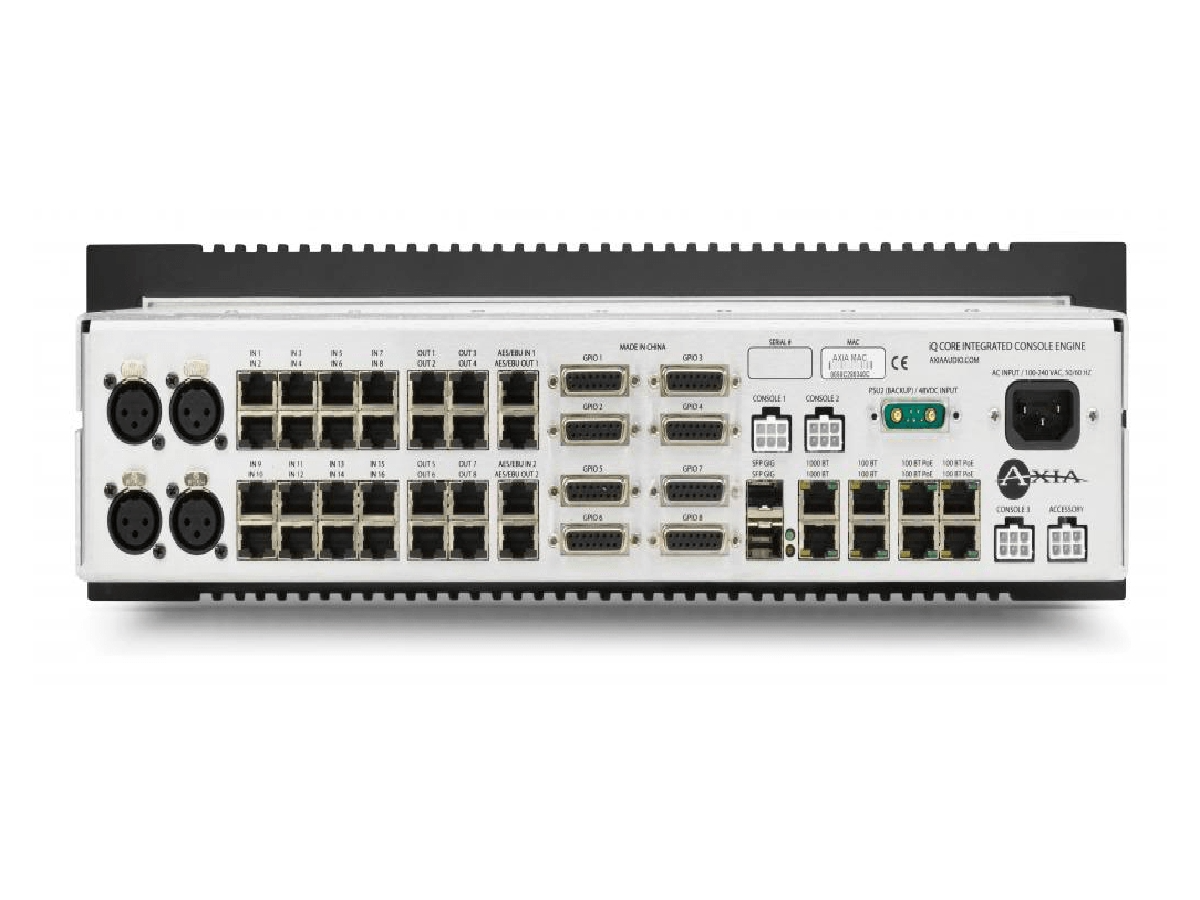

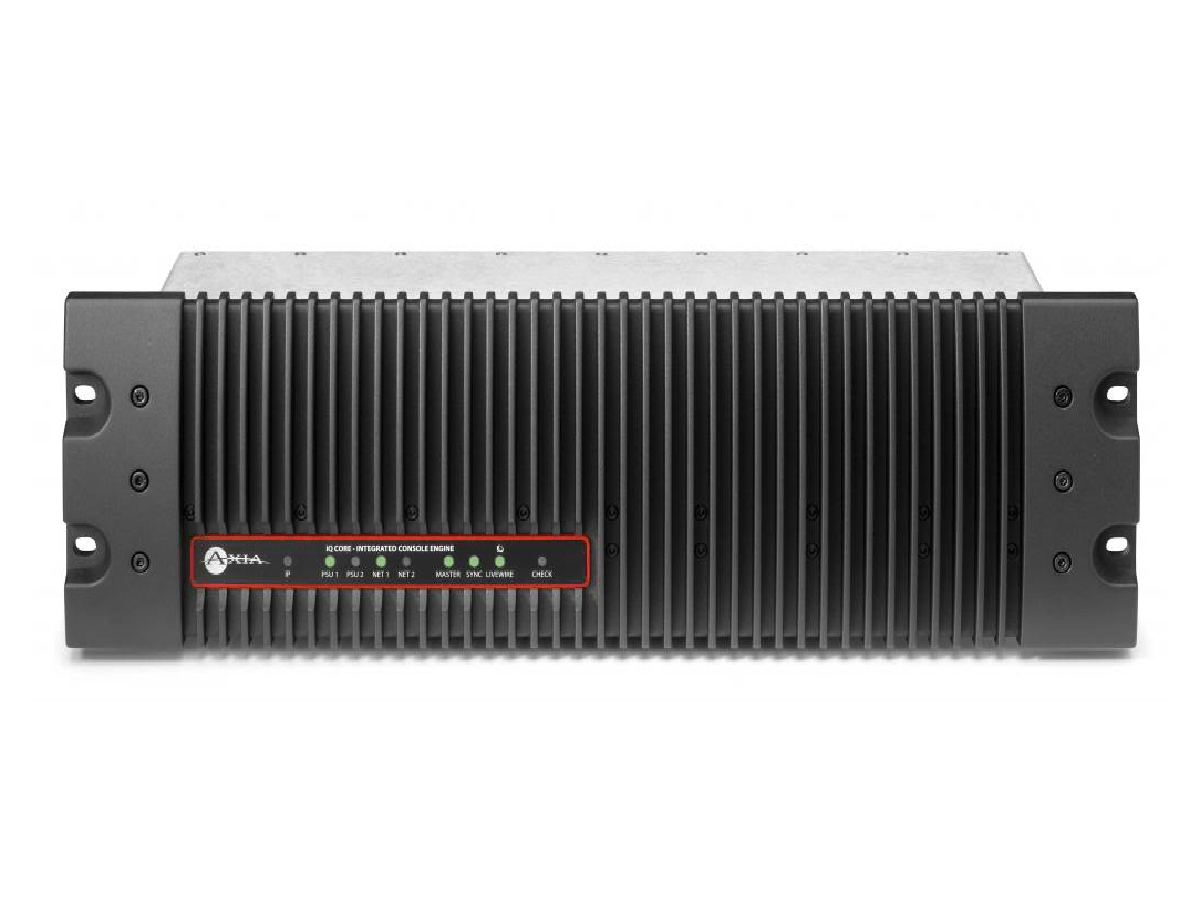

This Axia QOR.32 is the heart of any iQ mixing console. It contains the DSP-based mix engine, all audio inputs and outputs, control logic and an Ethernet switch. In total there are 4 mic inputs, 16 analog inputs, 8 analog outputs, 2 AES/EBU in/outs, 8 GPIO, Ethernet switch with 6 Livewire 100Base-T ports (4 with PoE), 2 Gigabit ports (RJ-45 & SFP). Inputs and outputs can be expanded with additional Axia Audio Nodes. The Axia QOR.32 supports mixers of up to 24 faders or 3 iQ mixer modules. Of all the Livewire streams (coming in through the Livewire ports), up to 12 Livewire streams can be processed by the QOR.32 engine. This can be configured as 12 incoming streams and 4 outgoing, or as 8 incoming and 8 outgoing. By installing a multichannel Livewire software driver in AerOn Studio (instead of a sound card), multiple Livewire streams can be easily connected to the Axia via a single network cable, and Live Assist players, jingle players, etc. can be easily controlled.
