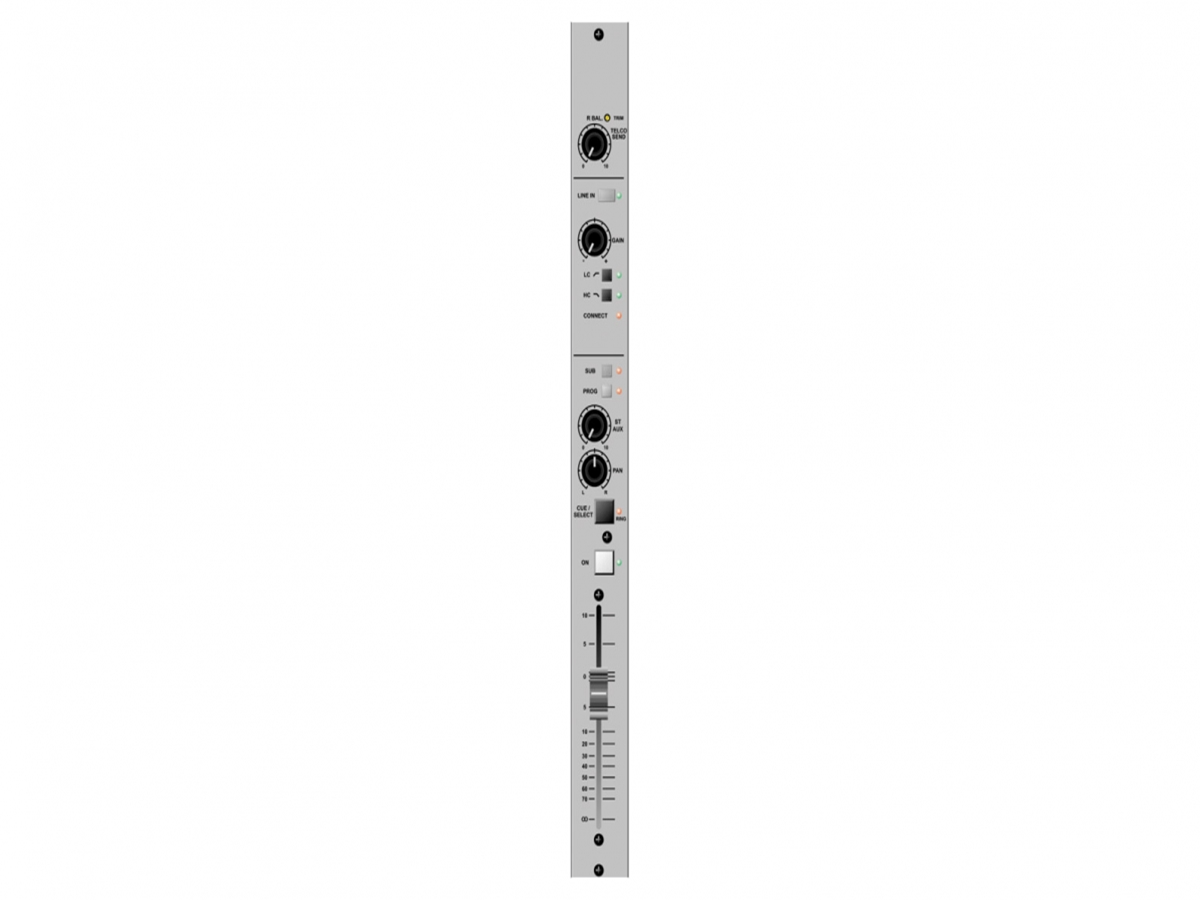

D&R Airlab module triple input EQ (silver)

This D&R AIRLAB Triple Input module combines a microphone input with two stereo line inputs for ultimate flexibility. The microphone input is electronically balanced with the professional SSM 2017 low-noise microphone preamplifier and comes standard with an insertion point at no extra charge. A 48 Volt phantom power switch is also integrated. In addition to the gain control, there is a trimmer, adjustable from the front, with which the mic gain can be controlled. A low-off filter can be activated internally with a sweater. The microphone input is located on the rear panel on XLR-female. The stereo A input in balanced on XLR output and the unbalanced stereo B input is output on Cinch. It can be expanded with an optional RIAA module so that turntables can be connected. The fixed +/- 12dB three-band equalizer is followed by a SUB and PROGRAM key that can route the signal to both outputs so that production work can be done during broadcasts.
