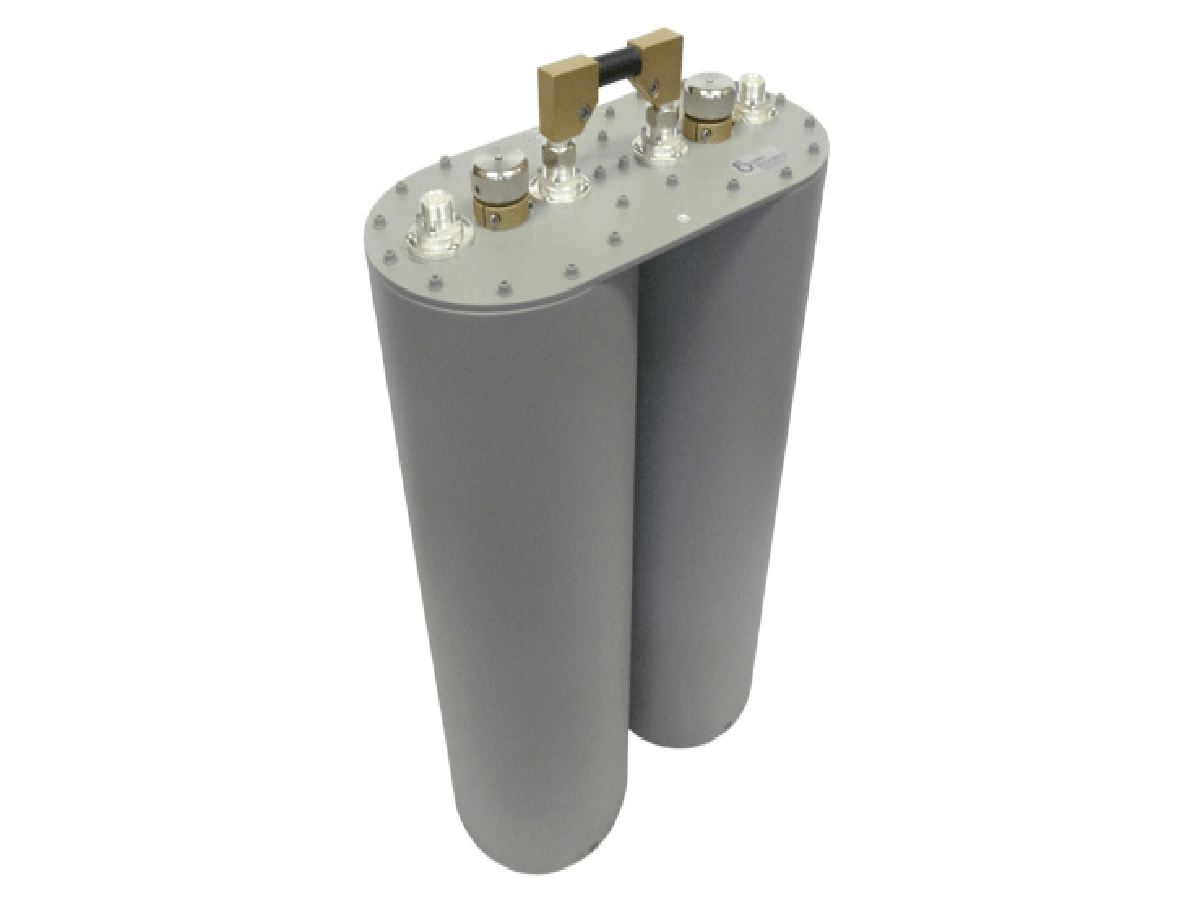

Delta Meccanica 2kW Band Pass FM Filter double cavity (P.N. 20011)

When transmitters are close together or multiple transmitters are used in the same location, new frequencies can be formed, called “intermodulation.” Because these frequencies must be strongly suppressed, a cavity filter must be placed after each output of the transmitter or output stage. A double cavity filter is suitable for a maximum frequency spacing of 2 MHz; otherwise, a triple cavity filter is required. The cavity filter must be rated for the power of the transmitter or output stage. This Delta Meccanica 2kW Band Pass FM Filter double cavity with 7/16″ output connector prevents intermodulation on transmitters with power up to 2kW.
