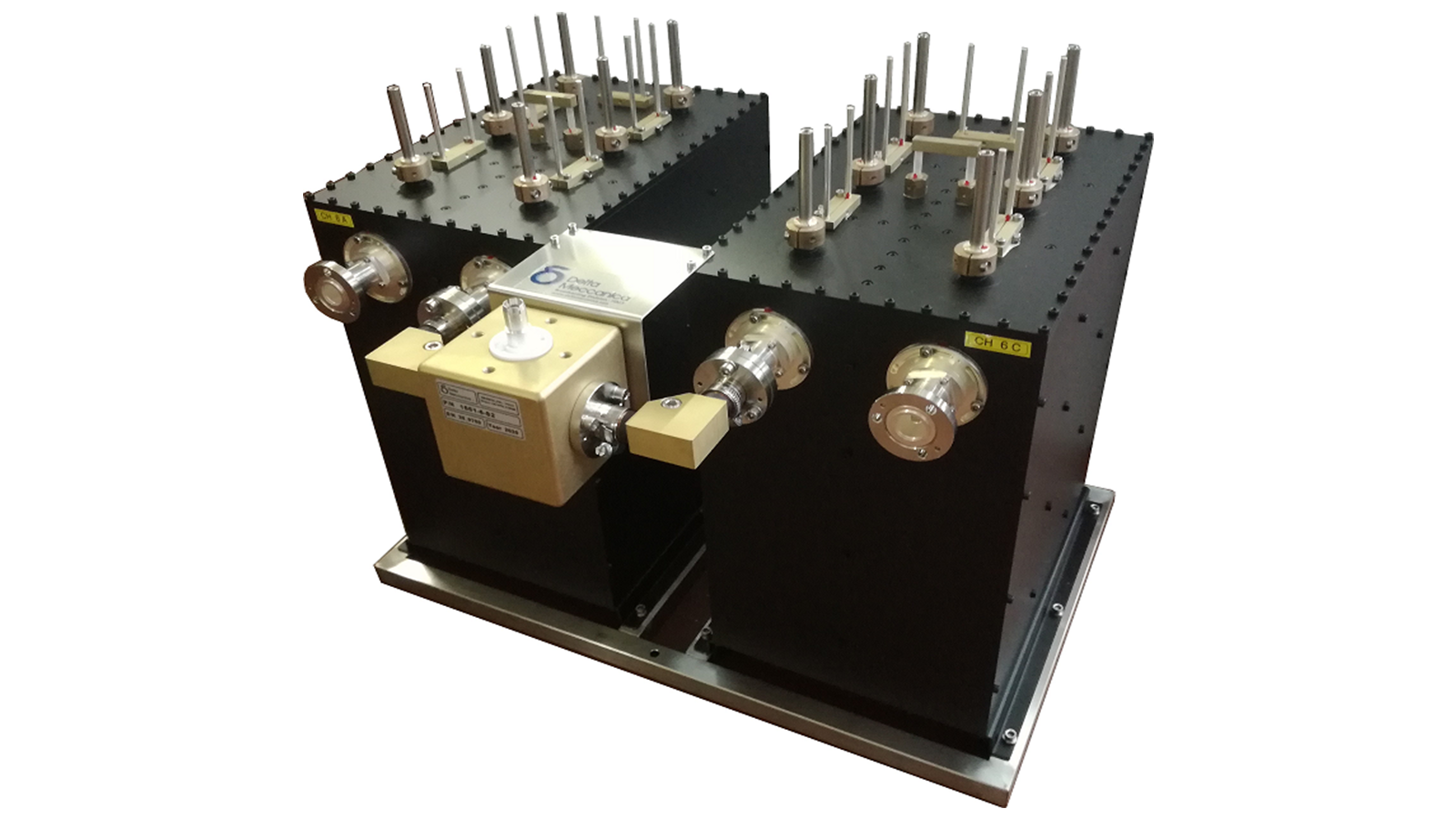

Delta Meccanica DAB/DMB Star Point Combiner 2 x 1kW (PN1661-6.S2)

This Starpoint combiner is a compact and effective solution when there is a large channel separation between the transmitter and the re-broadcaster. The configuration of the Starpoint allows four band-pass filters to be combined. The combiner is tuned by frequency but can be easily adjusted even on site. The frequencies should be at least 1.8 MHz apart. Starpoint combiners are available with two, three or four inputs and can handle power from 300 watts to 20kW per input.
